0 ÷ 1 mA
I set resolution: 20 nA
I mon resolution: 1 nA
Max power: 0.7 W
0 ÷ 100 µA
I set resolution: 20 nA
I mon resolution: 100 pA
0 ÷ 3 mA
I set resolution: 20 nA
I mon resolution: 3 nA
Max power: 1.5 W
0 ÷ 300 µA
I set resolution: 20 nA
I mon resolution: 300 pA

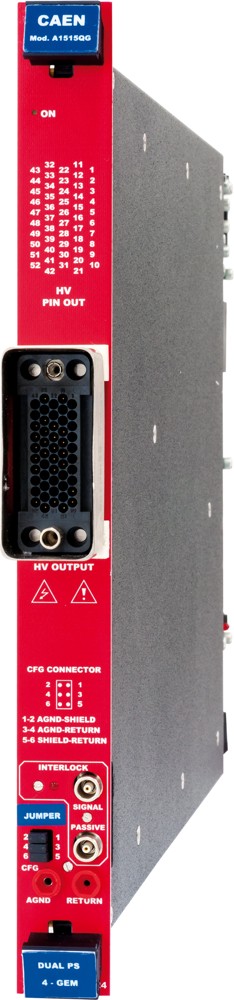

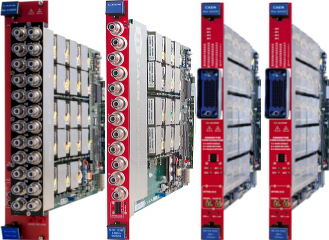

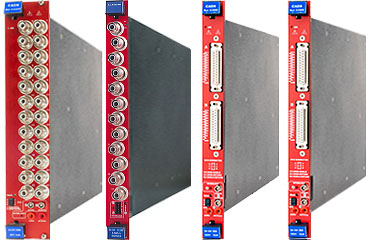

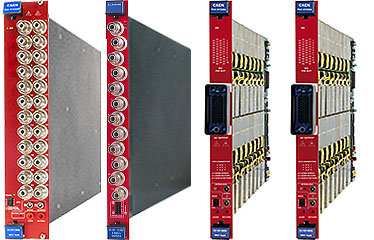

No. of Channels | 16 or 14 (Floating Return) A1515TG, A1515QG, A1515CG, A1515TGHP: channel are grouped in two "complex" channels |
Output Voltage | 0÷1 kV 0÷1.3 kV (for 2 channels of A1515CG) |
Polarity | Floating 5 kV |
Max. Output Current | A1515 - A1515TG - A1515QG - A1515CG: 1 mA (700 mW) A1515TGHP: 3 mA (1500 mW) |
Voltage Set/Monitor Resolution | 20 mV |
Current Set Resolution | 20 nA |
Current Monitor Resolution |
High Power:
High Resolution: 1 nA
3 nA 100 pA 300 pA A1515 - A1515TG - A1515QG -
A1515CG A1515TGHP A1515 - A1515TG - A1515QG - A1515CG A1515TGHP |
VMAX software | 0÷1 kV or 0÷1.3 kV (A1515CG), settable for each channel |
VMAX software resolution | 1 V |
Ramp Up/Down | 1÷100 Volt/sec, 1 Volt/sec step, settable for each channel |
Trip | Max. time an "overcurrent" is allowed to last (seconds); common to all channels in a "complex channel". A channel in "overcurrent" works as a current generator; output voltage varies in order to keep the output current lower than the programmed value. "Overcurrent" lasting more than set value, causes the channel to "trip". Output voltage will drop to zero at the Ramp-down rate; in this case the channel is put in the off state. If trip= INFINITE, "overcurrent" lasts indefinitely. TRIP range: 0 ÷ 999.9 s; 1000 s = Infinite. Step = 0.1 s |
Voltage Ripple | differential mode: typical < 5 mV; max 10 mV common mode: typical < 10 mV; max 15 mV |
Voltage Monitor vs. Output Voltage Accuracy | 0.2% ± 0.2V ± 50ppm/°C |
Voltage Set vs. Output Voltage Accuracy | 0.2% ± 0.2V ± 50ppm/°C |
Imon det vs Output current accuracy | 0.5% ±5nA ±50ppm/°C with output current from 10% to 100%
f.s. and constant voltage 2% ±5nA ±50ppm/°C with output current up to 10% f.s. and constant voltage |
Power consumption | 90W full power for A1515 (16 CH) 80W standby consumer |
Imon real vs current set accuracy | 2% ±100nA |
Maximum output power | A1515TG/A1515QG/A1515CG: 700 mW per channel A1515TGHP: 1.5W per channel |
Code | Description |
---|---|
WA1515QGXAAA | A1515QG - 16 Channel Floating 1kV, 1mA Board for Quadruple GEM detectors |
WA1515TGXAAA | A1515TG - 14 Channel Floating 1kV, 1mA Board for Triple GEM detectors |
WA1515CGXAAA | A1515CG - 14 Channel Floating 1.3/1kV, 1mA Board for Cylindrical GEM detectors |
WA1515TGHPXA | A1515TGHP - 14 Channel Floating 1kV, 3mA Board (1,5W max) for Triple GEM detectors |
WA1515XAAAAA | A1515 - 16 Channel Floating 1kV, 1mA Board |
Related Accessories | |
---|---|
A995 | Insertion/extraction tool for A996 |
A996 | 52 pin cable connector |
A1015G | 14/16 Stacked Channel Multipin Radiall to SHV connector Adapter for A1515TG/A1515QG |
Manuals | Last Update |
---|---|
A1515 User Manual | 8 March 2018 |
